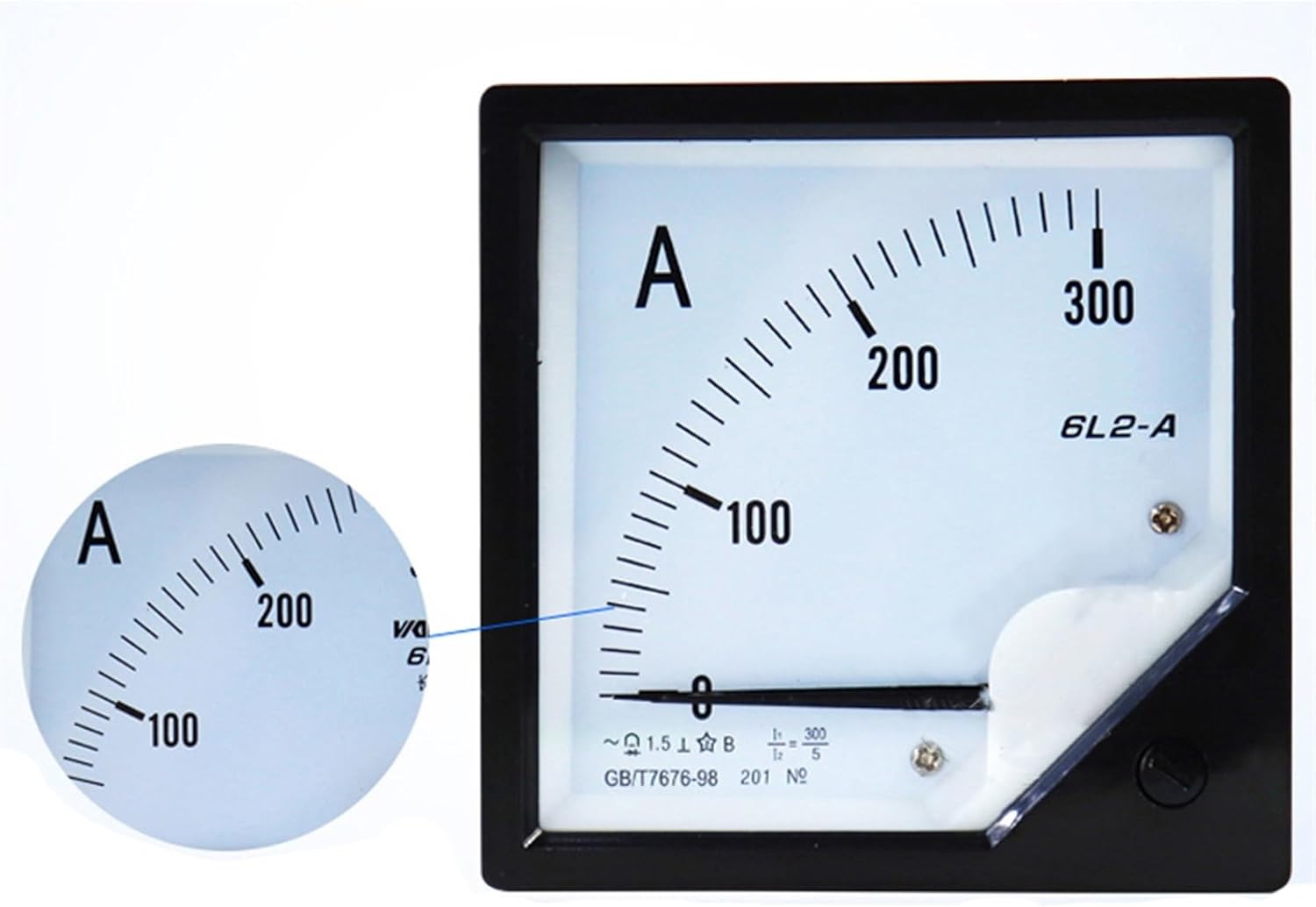

YANHAO 6L2-A 5A 10A 15A 20A 30A AC Direct Analog Meter Panel AMP Current Ammeter Gauge Pointer Ammeter 80 * 80MM Amperimetro AC 1Pcs (Size : 15A)
4.3 (143 items)
Limited Time Sale$21.29 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215565282 | Release Date | 2026/04/12 | List Price | $14.19 | Model Number | 215565282 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

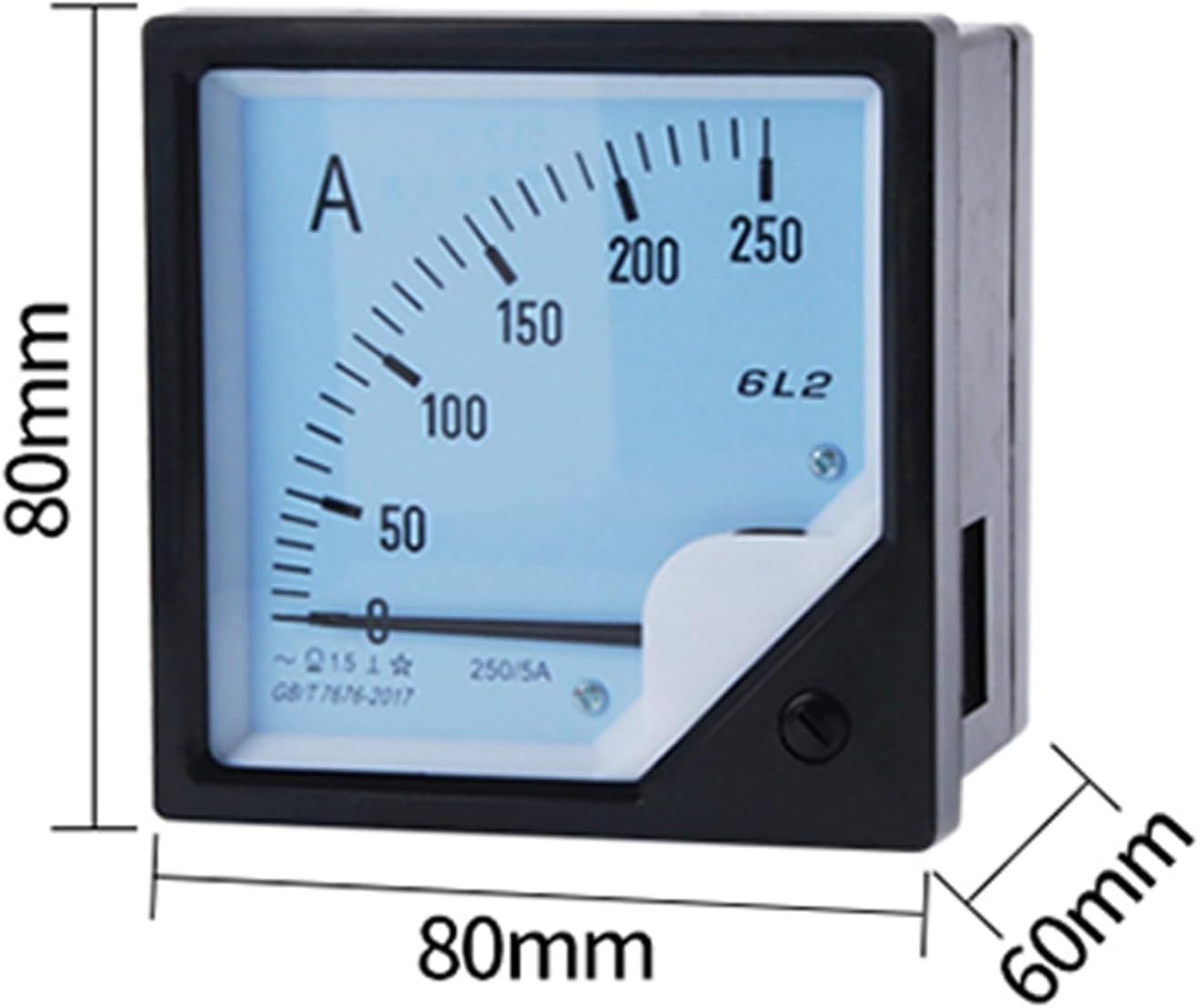

InstrumentationProduct details:1. Model: 6L2-A2. Color: White and Black3. Accuracy: 1.54. Size: 80 mm x 80 mm x 85 mm(L*H*W)5. Package:1*Analog Current Panel Meter.(with the mounting nut)6. Measuring Range:According to your choice.First. UseThis instrument is a switched magnetoelectric instrument, which is used for measurement of AC / DC current or voltage. The ambient temperature is -20 - +55°, and the relative humidity is not more than 96% (25).Two. SpecificationsAC ammeter 0.5~50A (direct access)5A~15KA (connected by current transformer, secondary current 5A)AC voltmeter 5V~600V (direct access)DC ammeter (direct access) (direct access) (direct access) (direct access) (50uA~10A)15A~15KA (using external partition constant value shunt)Direct current voltmeter (direct access) (direct access) (direct access) (direct access) (5V~600V)Three. The main technical characteristics1. the damping time is less than 4S.2. Insulation strength: AC2000V (50HZ), 1 minutes.
- Instrumentation
| Brand Name | YANHAO |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 1 Grams |
| Manufacturer | YANHAO |
