TECHTONGDA High-Precision Mini Milling Machine MT3 with Brushless Motor and Digital Readout Benchtop Mill/Drill for Fine Metal & Wood Processing 1100W Power Infinitely Variable-Speed (50-2250rpm)
4.8 (81 items)
Limited Time SaleUntil the end
21
57
40
$1,125.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $1,875.00
Product details
| Management number | 218622337 | Release Date | 2026/05/03 | List Price | $750.00 | Model Number | 218622337 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- With MT3-ER32 Drill Chucks. The Mini Milling Machine has a MT3 metric thread, comes with a set of high precision MT3-ER32 chucks. The chucks come in various sizes: 4-3/5-4/6-5/8-7/10-9/12-11/14-13/16-15.

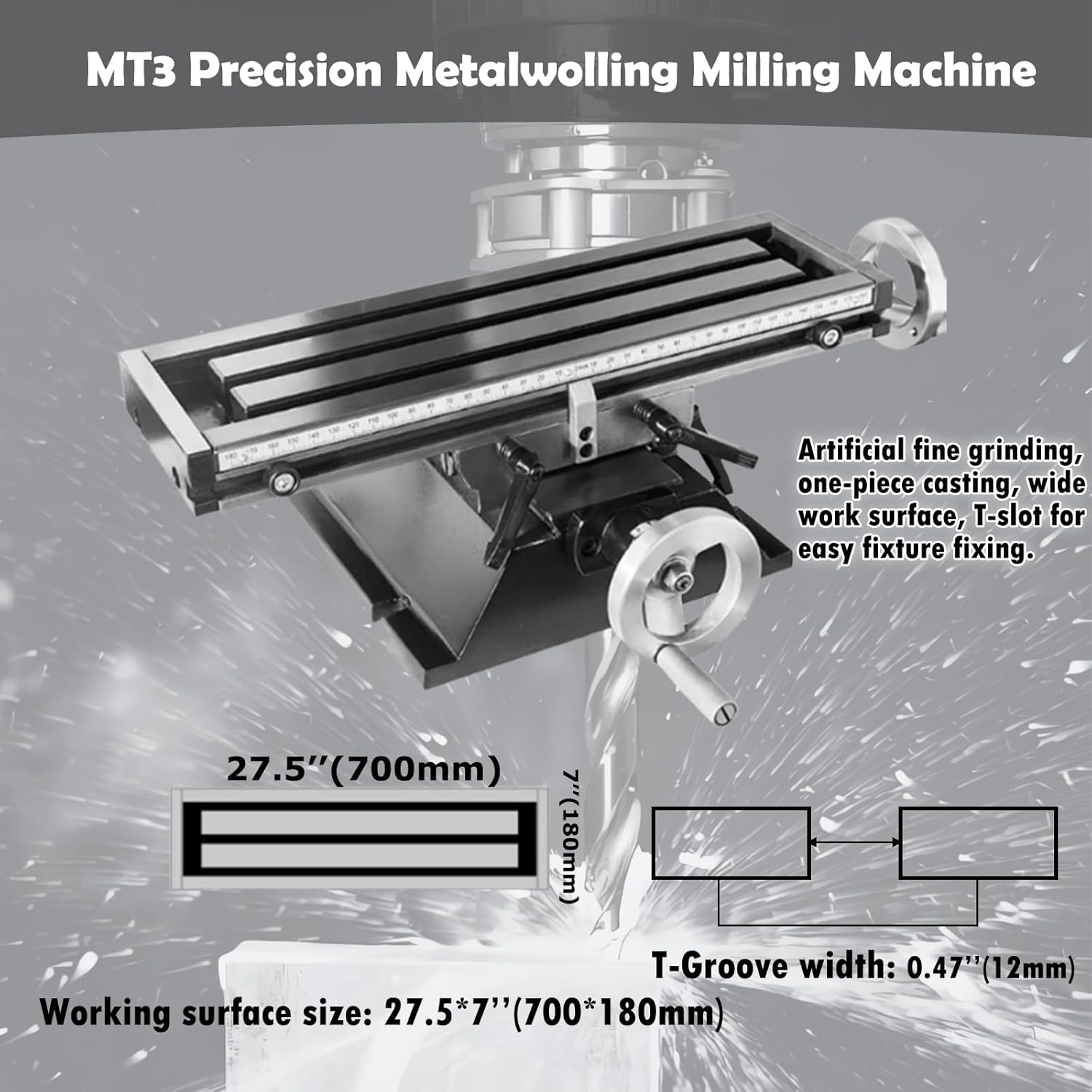

- Intergrated Cross Worktable. Our working table measures 27.5"x7.1"(700mmx180mm). The table is artificially fine-grinded, cast integrally, with high precision positioning adjustment scale, and includes a T-slot for convenient fixture fixation. Crafted for high quality, it's both reliable.
- 1100W Variable Speed. Benchtop Mill Drill Machine equipped with a 1100W brushless motor, with overload and overheating protection function, provides strong power to handle any task. It also features an Infinitely Variable-Speed with a wide range of spindle speeds from 50-2250rpm, giving you complete control over the speed for precise operations.
- High Efficiency. The Mill Drill Machine with drilling, milling groove, plane milling chamfering and other functions, suitable for all kinds of metal, wood and other materials fine processing, widely used in machinery manufacturing,woodworking DIY and so on.
- ±45 Degrees. Machine Head Tilt The head of the machine can betilted to the left and to the right by loosening the fixing screws of the head of the machine. The tilt Angle range is up to 90° which is easy for drilling and milling special angles.
- Precision Engineering. X axis stroke: 18.9"(480mm), Y axis stroke: 6.9"(175mm), Z axis stroke: 11"(280mm), Spindle incline Angle: ±90°, Max. drilling diameter: 0.9"(25mm), Max. Face screening capacity: 2.5"(63mm), Max. vertical milling capacity: 0.79"(20mm), Distance from spindle to table: 13.8"(350mm), Spindle taper: MT3, Spindle stroke: 2"(52mm)
| UPC | 738629480278 |
|---|---|
| Color | Multicolor, White |
| Speed | 2250 RPM |
| Voltage | 110 Volts |
| Brand Name | TECHTONGDA |
| Drill Type | Drill Press |
| Unit Count | 1.0 Count |
| Is Electric | Yes |
| Item Weight | 296 Pounds |
| Manufacturer | TECHTONGDA |
| Model Number | J028277 |
| Power Source | Corded Electric |
| Material Type | Metal |
| Maximum Power | 1100 Watts |
| Number of Speeds | 1 |
| Additional Features | Variable Speed |
| Included Components | Parallel-jaw vice * 1, Fork wrench * 2, Drill chuck wrench *1, Oil can * 1, Cross screwdriver *1, Word screwdriver *1, Hexagon wrench *5, RCOG-25V drilling and milling machine *1, Drill chuck * 1, Drill chuck retaining pin *1, Milling chuck fitting set *1 |
| Drilling Capacity Wood | 0.9 Inches |
| Drilling Capacity Metal | 0.9 Inches |
| Manufacturer Part Number | J028277 |
| Maximum Rotational Speed | 2250 RPM |
| Item Dimensions L x W x H | 36"L x 23"W x 38"H |
