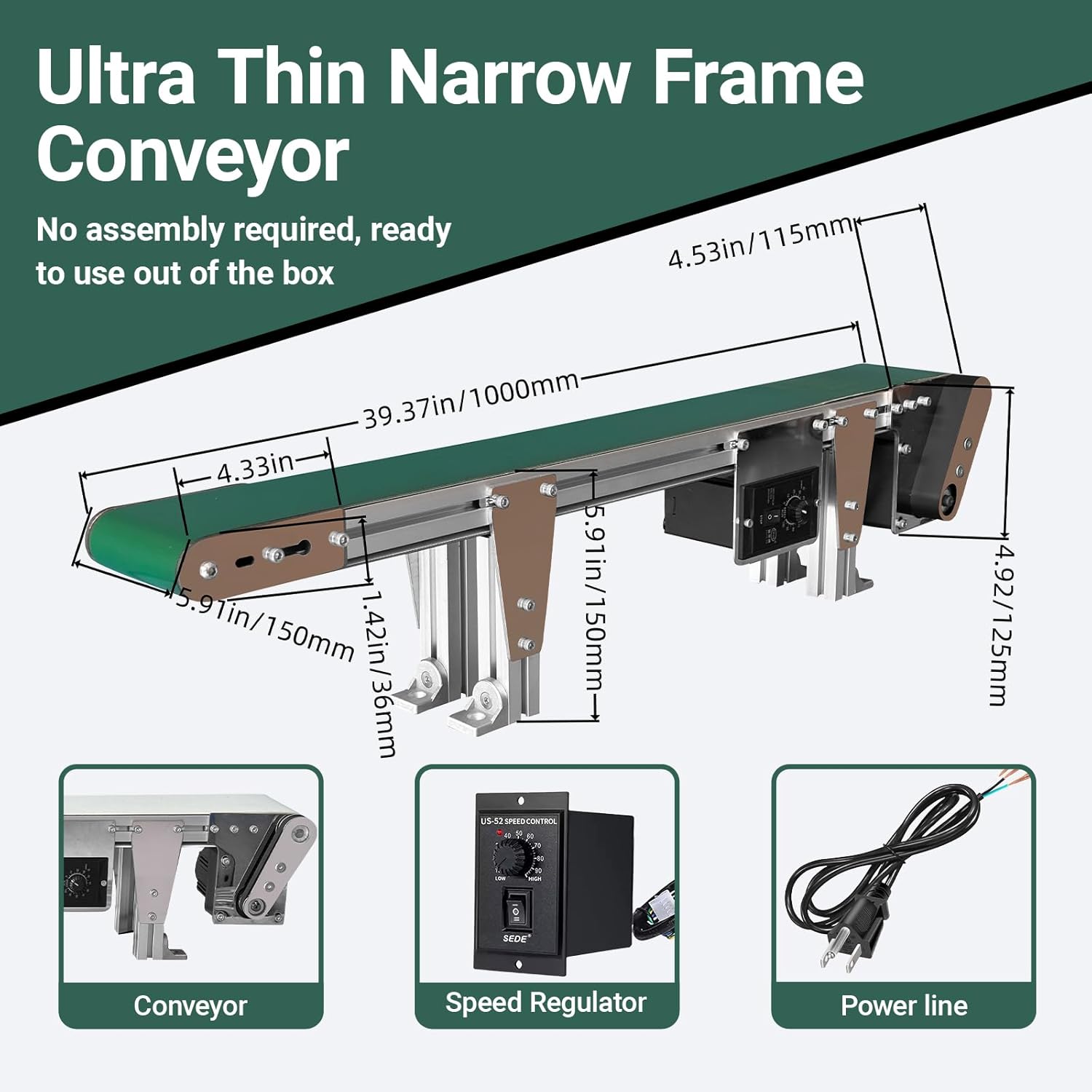

Small Ultra-Thin Frameless Conveyor 39.4″x 5.91″, Narrow Edge Conveyor Belt, PVC Belt can be Used for Stamping and Food conveying, with stepless Speed Regulation and Forward and Backward Switching
4.1 (62 items)
Limited Time Sale$215.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 219346960 | Release Date | 2026/05/03 | List Price | $143.60 | Model Number | 219346960 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Ultra thin borderless design: The conveyor adopts the design concept of ultra-thin (the thickness of the main working area in the middle is only 34mm) and borderless (the middle area has no borders at all, instead of the motor end with a single side containing fastened sheet metal parts and protruding nuts of only 8mm), which is very suitable for use in space limited scenarios, such as stamping machine mold mouth feeding, packaging machine feeding, etc
- Adjustable speed and direction: Equipped with a stepless speed regulator as standard, it can be adjusted freely within the range of 0-12 meters/minute, and supports forward and reverse switching to adapt to various complex usage scenarios

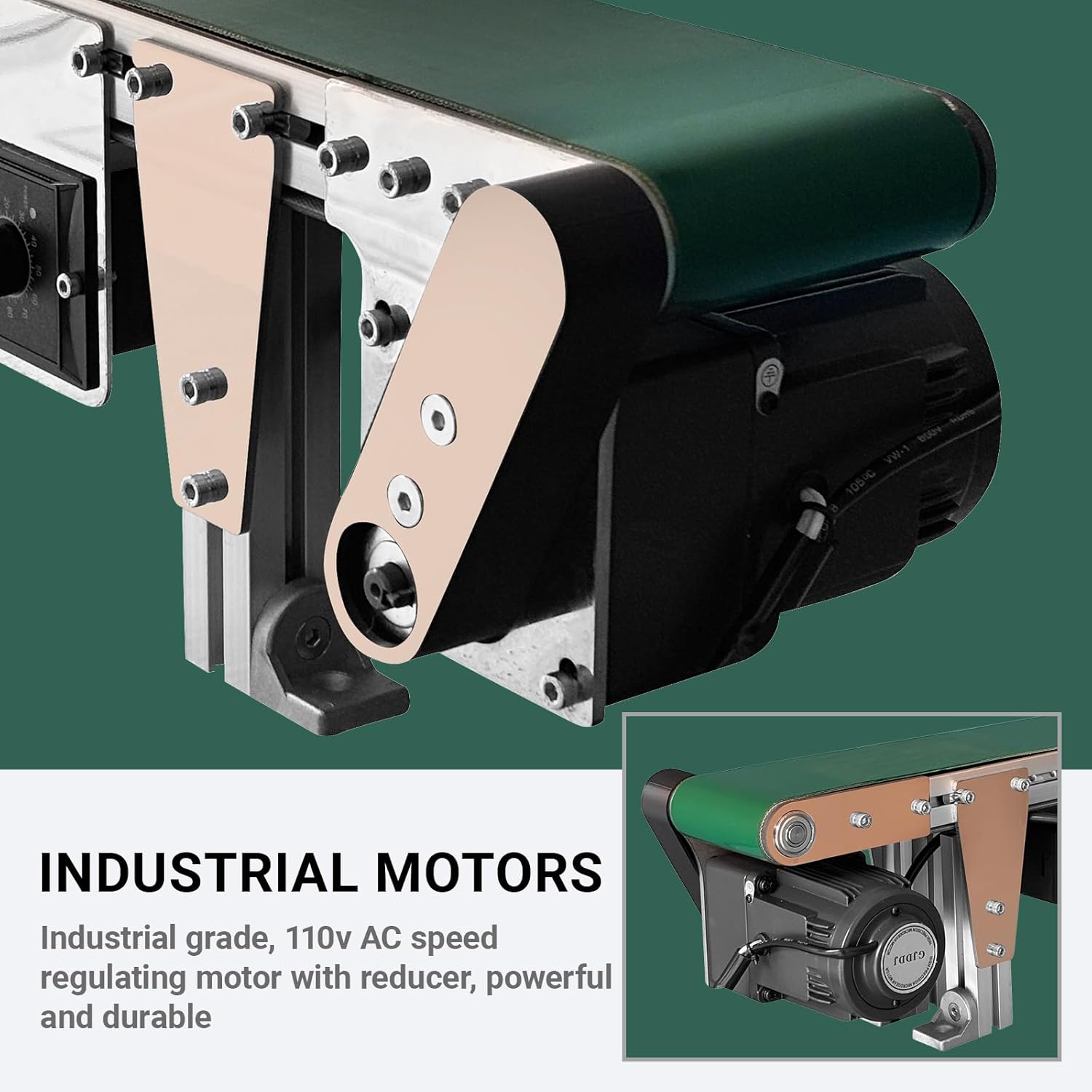

- High performance motor: This conveyor is equipped with a high-performance industrial grade reduction motor with a power of 25 watts (including a set of reduction gearboxes with a reduction ratio of 7.5), with a maximum speed of 200 revolutions per minute and a maximum allowable load of 0.75N. M, providing strong support for long-term operation of the conveyor
- PVC conveyor belt: This conveyor is equipped with an industrial grade belt with a thickness of up to 2mm. The surface material is PVC, which has the characteristics of wear resistance, oil resistance, long service life, and high flexibility
- Rubber coated drive shaft: The surface of the drive shaft of this conveyor is not simply bare metal, but wrapped with a thick layer of silicone, which can greatly increase the friction between the drive shaft and the belt, thereby preventing slipping. This is particularly important for use scenarios that require precise control of material positioning

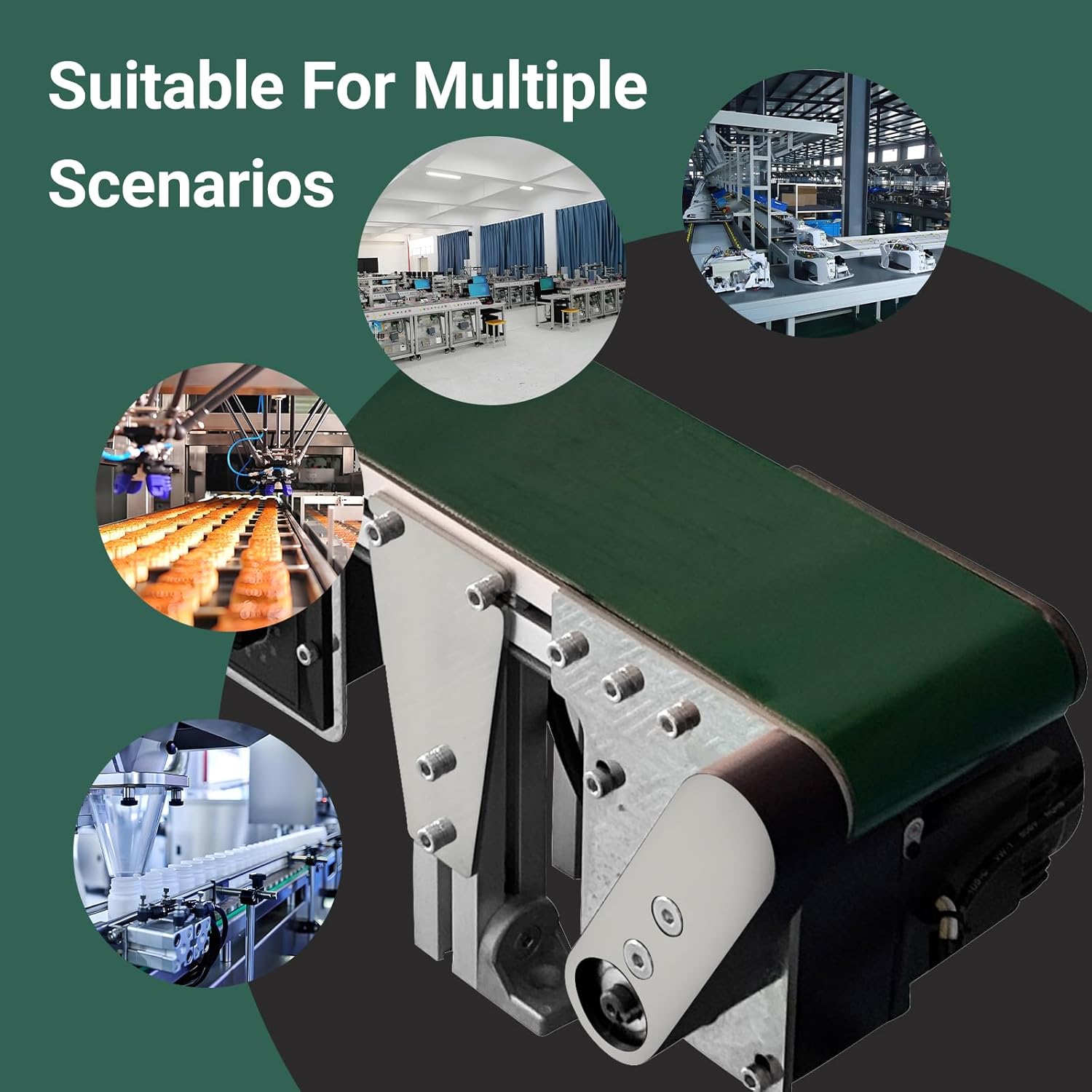

- This conveyor is compact in size, operates with low noise, has abundant power, and has a relatively large proportion of effective conveying surface. In addition to being used as a standalone desktop conveying system, it can also be combined with other equipment to form complex systems, such as assembly lines, various packaging machines, quality inspection machines, student experimental platforms, etc. Currently, this conveyor has been effectively utilized in food, factories, schools, hospitals, and other places
| Color | green |
|---|---|
| Brand Name | BHXMKDPSH |
| Item Weight | 19.4 Pounds |
| Part Number | PVC30-150-1000-D150-25W-G |
| Manufacturer | BHXMKDPSH |
| Material Type | Polyvinyl Chloride (PVC) |
| Compatible Devices | Conveyer System |
| Included Components | 1 x Belt Conveyor |
| Item Dimensions L x W | 39.4"L x 5.91"W |
