Phanteks (PH-P1600TR_BK01C) Revolt 1600W 80PLUS Titanium, ATX 3. 0, PCIe 5.0, FullyModular, Cable-Less, Power Supply Unit Only (Cables Sold Separately), Black
4.8 (110 items)
Limited Time Sale$18.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216116806 | Release Date | 2026/04/19 | List Price | $12.00 | Model Number | 216116806 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

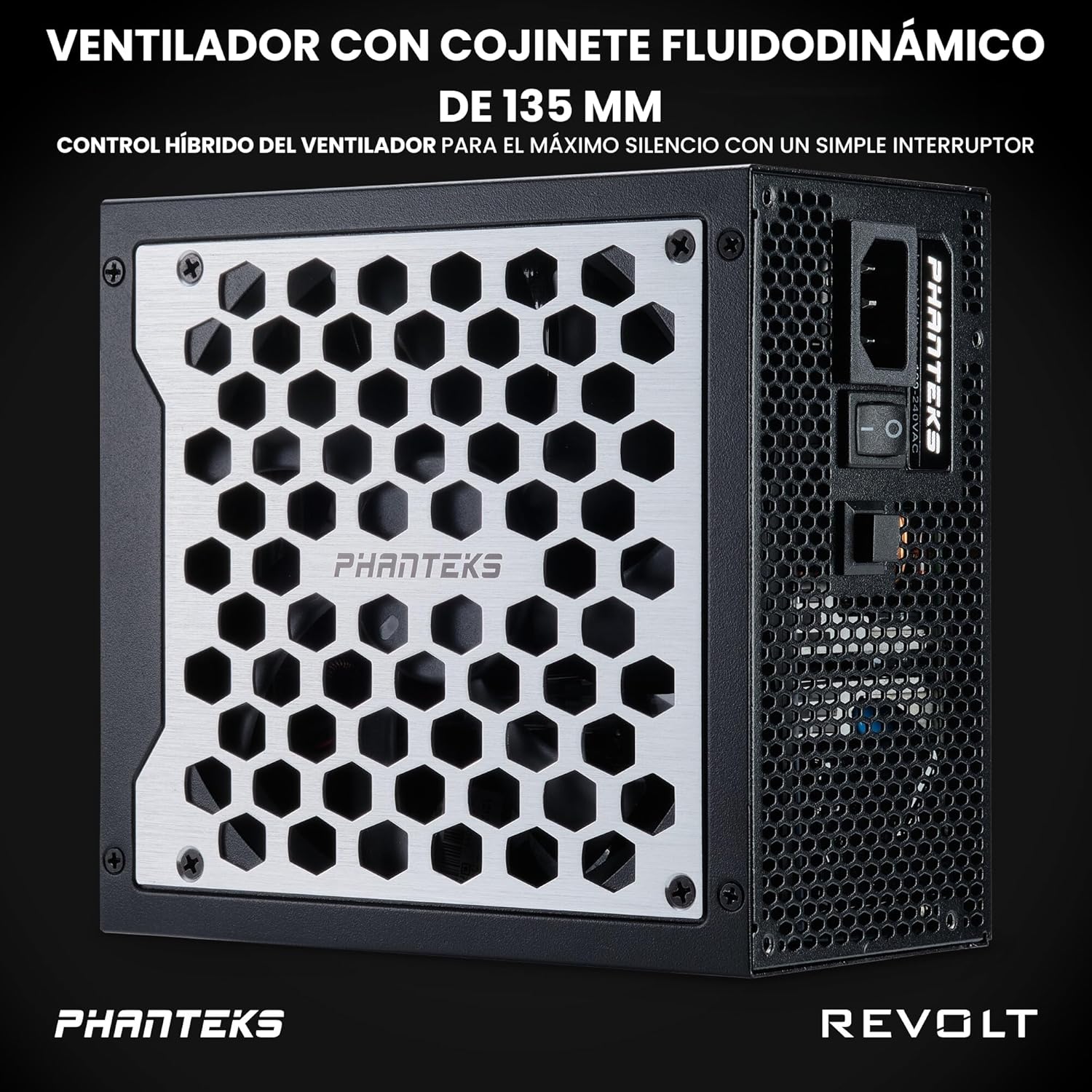

Phanteks will offer a power supply without cables for users who want custom cables from CableMod. The new Revolt power supplies give you complete control to choose which power supply and which cables you need, saving needless cables in the process. The Revolt power supplies from Phanteks have been developed with Seasonic to ensure the highest standards of performance and reliability. All models fully support and exceed the latest Intel ATX 3.0 specifications and with 80 Plus Titanium. Type: Power Supply DC output 1600W 80+ Titanium. Color: Black. Cooling Fan: 135mm Fluid Dynamic Bearing (FDB) Fan. Output Protection: OPP (Overpower Protection), OVP (Over Voltage Protection), UVP (Under voltage protection, SCP (Short Circuit Protection), OCP (Over Current Protection), OTP (Over Temperature Protection), No-Load Protection, Reset Protection. Back Plate: Fully Modular. PSU Output Connector: 1x 18+10pin => Motherboard, 9x 8pin => CPU / PCIe, 6x 6pin => SATA / Molex, 2x 12VHPWR => PCIe. Output Voltage 12V / Maximum Current 133.33A / Max Capacity 1600W. Output Voltage 5V / Maximum Current 25A / Max Capacity 125W. Output Voltage 3.3V / Maximum Current 25A / Max Capacity 125W. Output Voltage -12V / Maximum Current 0.5A / Max Capacity 6W. Output Voltage 5VSB / Maximum Current 3A / Max Capacity 15W. DC Output: 1600W 115-240 Vac, 1300W 100-240 Vac. AC Input: 100-240 Vac 15-10A 50-60Hz. 16-Pin PCI-e Gen5 Capacity: 600W. Operating Temp.: 0 to 50 degree Celsius. Operating Humidity: To 85% relative humidity (non-condensing). Storage Temperature: -40 to 85 degree Celsius. Storage Humidity: To 95% relative humidity (non-condensing). MTBF: Over 100,000 hours at 25 degree Celsius excluding the DC Fan.
- Complete control to choose which power supply and which cables you need. Total control and freedom. No need to pay for (unnecessary cables). Choose the perfect customized cables from CableMod. (No cables included)
- Ready to handle new and upcoming CPU and GPU hardware, high power peaks of up to 235% of its rated output.
- The 12VHPWR connector provides up to 600 watts of power to the GPU through a single connector directly from the Revolt power supply.
- 80PLUS Certified 94% efficiency at 50% load increases stability which lowers power consumption and heat from the PSU
| UPC | 886523510147 |
|---|---|
| Brand | Phanteks |
| Wattage | 1600 watts |
| Fan Size | 135 Millimeters |
| Model Name | Revolt 1600W Titanium |
| Form Factor | ATX |
| Item Weight | 7.1 Pounds |
| Manufacturer | Phanteks |
| Model Number | PH-P1600TR_BK01C |
| Cooling Method | Air |
| Number of Fans | 1 |
| Output Wattage | 1600 |
| Item Dimensions | 8.3 x 5.9 x 3.4 inches |
| Mfr Part Number | PH-P1600TR_BK01C |
| Compatible Devices | COMPUTER |
| Power Supply Design | Full Modular |
| Warranty Description | 1 year manufacturer |
| Maximum Input Voltage | 100 Volts |
| Minimum Input Voltage | 100 Volts |
| System Bus Connector Type | 20+4 Pin |
| Connector Type Used on Cable | PCI Express |
| Global Trade Identification Number | 00886523510147 |
