Mini Milling Drilling Machine R8 Benchtop Mirco-Feed Precision Mill Drill Machine 7.1x27.5'' 1300W 20-2250rpm Variable Speed Metalwolling Milling Machine for Wood Metal 110V
4.6 (72 items)
Limited Time SaleUntil the end
03
28
23
$1,200.00 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New $2,000.00
Product details
| Management number | 218622325 | Release Date | 2026/05/03 | List Price | $800.00 | Model Number | 218622325 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- With R8-ER32 Drill Chucks. The Mini Milling Machine has a R8 metric thread, comes with a set of high precision R8-ER32 chucks. The chucks come in various sizes: 4-3/5-4/6-5/8-7/10-9/12-11/14-13/16-15.

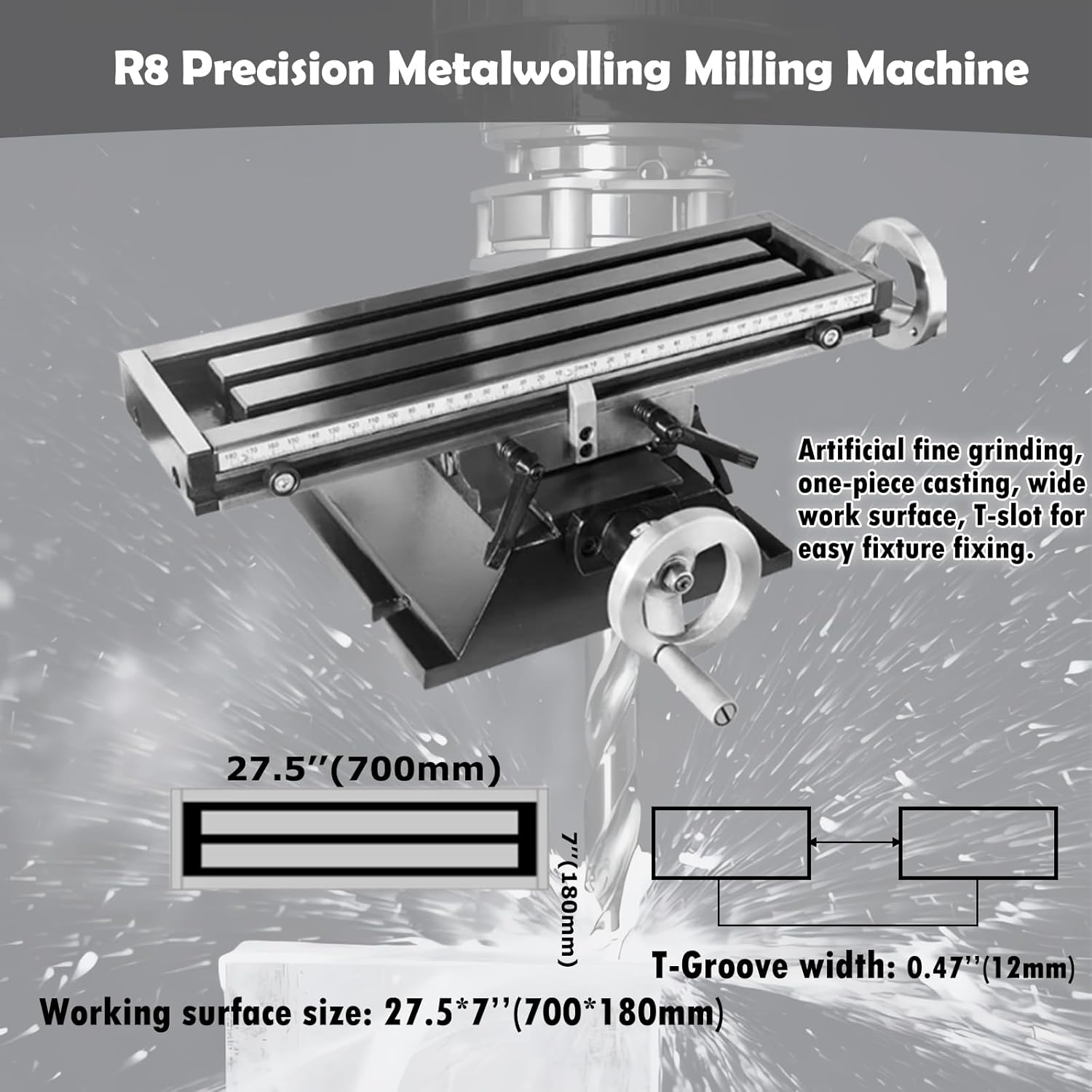

- Intergrated Cross Worktable. Our working table measures 27.5"x7.1"(700mmx180mm). The table is artificially fine-grinded, cast integrally, with high precision positioning adjustment scale, and includes a T-slot for convenient fixture fixation. Crafted for high quality, it's both reliable.
- 1300W Variable Speed. The milling machine equipped with a 1300W brushless motor, with overload and overheating protection function; Belt drive, high efficiency. Infinitely Variable-Speed, The Range of spindle speeds: 50-2250rpm
- High Efficiency. The Mill Drill Machine with drilling, milling groove, plane milling chamfering and other functions, suitable for all kinds of metal, wood and other materials fine processing, widely used in machinery manufacturing,woodworking DIY and so on.

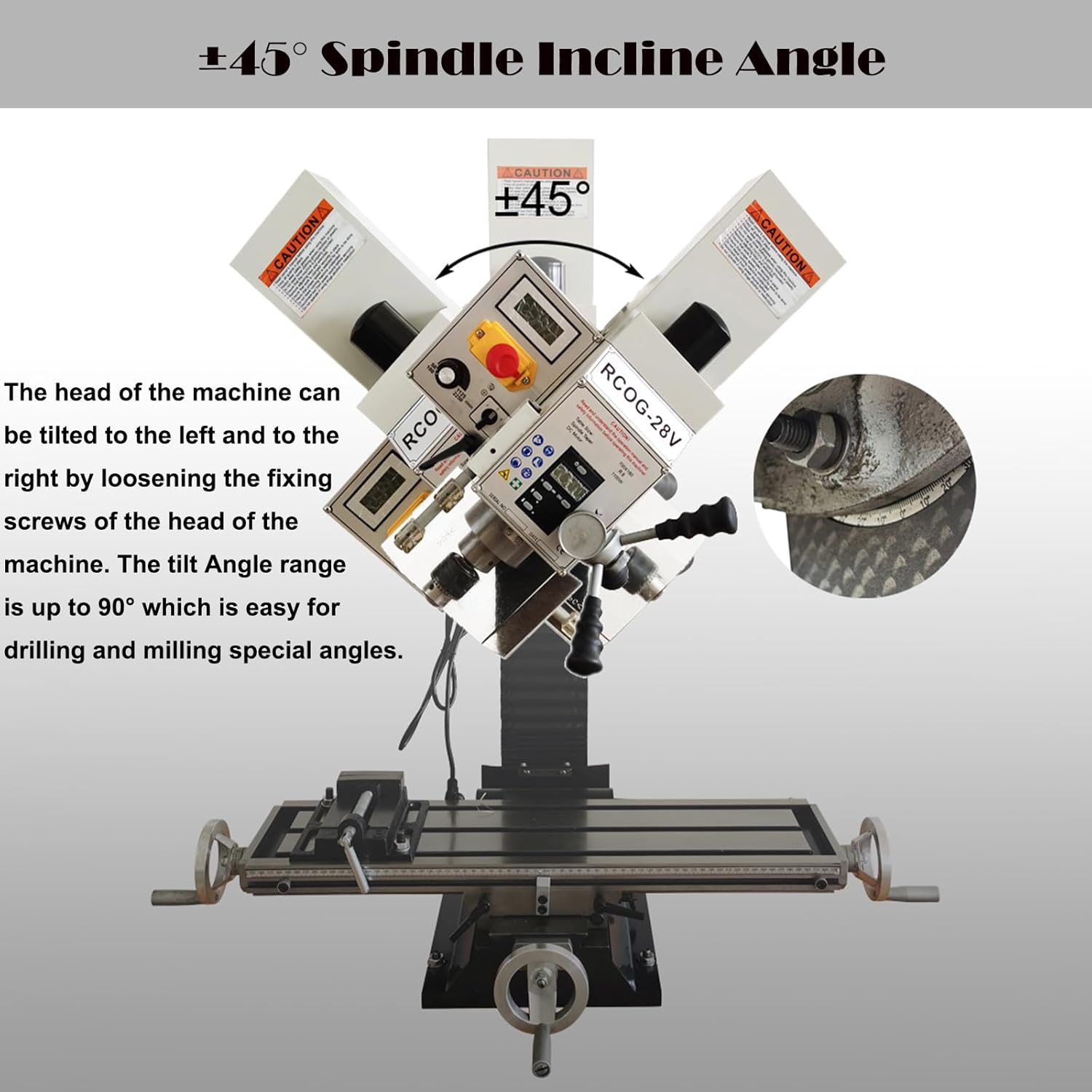

- ±45 Degrees. Machine Head Tilt The head of the machine can betilted to the left and to the right by loosening the fixing screws of the head of the machine. The tilt Angle range is up to 90° which is easy for drilling and milling special angles.
- Mill Drill Machine Parameters. X axis stroke: 18.9"(480mm), Y axis stroke: 6.9"(175mm), Z axis stroke: 11"(280mm), Max. drilling diameter: 1.1"(28mm), Max. Face screening capacity: 2.5"(63mm), Max. vertical milling capacity: 0.79"(20mm), Spindle taper: R8, Spindle stroke: 2"(52mm), T groove width: 0.47"(12mm), Table size: 27.5"*7.1"(700mm*180mm)
| UPC | 760714631401 |
|---|---|
| Color | Grey |
| Voltage | 110 Volts |
| Base Type | Fixed |
| Brand Name | HayWHNKN |
| Unit Count | 1.0 Count |
| Item Weight | 260 Pounds |
| Manufacturer | HayWHNKN |
| Model Number | S028356 |
| Power Source | AC |
| Material Type | Metal |
| Battery Description | Corded electric |
| Included Components | Milling chuck set *1/ Drill chuck *1/ Drill chuck retaining pin *1/ Bench clamp *1/ Fork wrench *2/ Drill chuck wrench *1/ Oil can *1/ Cross screwdriver *1/ Straight screwdriver *1/ Hexagon wrench *4/ English manual *1 |
| Item Dimensions W x H | 22"W x 30.5"H |
| Manufacturer Part Number | S028356 |
| Maximum Rotational Speed | 2250 RPM |
