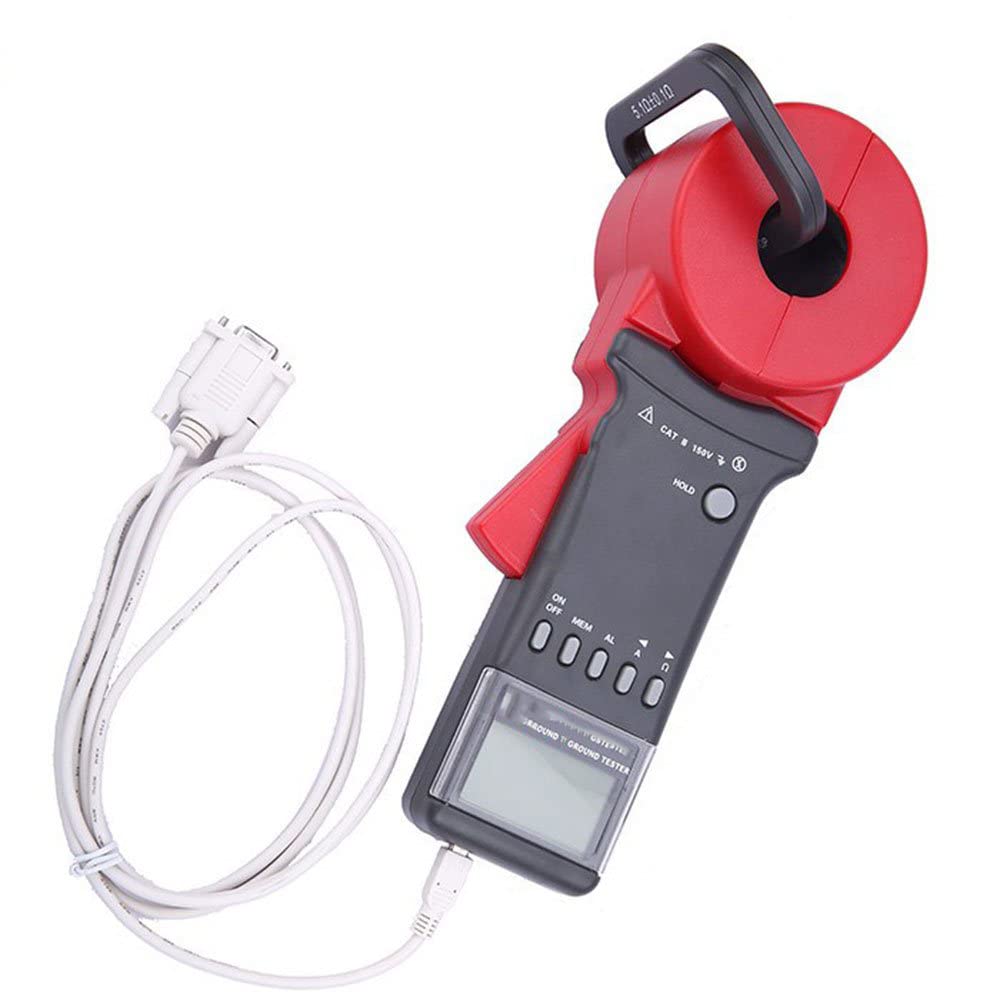

Clamp Ground Earth Resistance Meter Tester with 0.01 to 1200ohm Resistance Range 0.00mA to 40.0A Current Tester 99 Sets Data Logger

Shipping Policy : Battery and Liquid not included during the shipping Introduction:The multi-functional clamp ground resistance tester, grounding resistance and loop resistance measurement (range: 0.010Ω ~ 1200Ω); leakage current measurement (range: 0.00mA ~ 40.0A). When measuring the looped grounding system, it is not necessary to disconnect the ground deflector and no auxiliary electrode is needed. Just clamp the meter and clamp it directly on the ground lead. The value displayed by the clamp meter is the grounding body resistance and The integrated value of the ground lead resistance, this measurement method can quickly and safely obtain the measurement results. Specifications: Function:Ground resistance test, Loop resistance test Resistance Range:0.01-1200Ω Resistance Resolution:0.001Ω Highest Resistance Accuracy:±1%±0.01Ω Current Range:0.00mA-40.0A Current Resolution:0.05mA Highest Current Accuracy:±2.5%±1mA Data memory:99 Sets Alarm Threshold Setting Range: 1-199Ω Clamp Size:65mm×32mm Clamp Opening Extent:32mm Clamp Dimension:L×W×T: 285mm×85mm×56mm Protection Level:Dual Insulation Structural Feature:Clamp CT Shifting:Automatic shifting External magnetic field:＜40A/m External electrical field:＜1V/m Single measurement time:0.5 second Resistance measurement frequency:＞1KHz Measured current frequency:50/60Hz Automatic measurement Low Battery Indication:Low battery symbol displays when battery is lower then 5.3V Memory Full Indication:MEM symbol blinks when all 99 sets memory is full Auto Power-off:5 minutes after Boot up RS232 Interface :The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files

• ★100% BRAND NEW,easy operate.
• ★ Sound and Light Alarm Functions,to support your measurement
• ★Simplifies ground resistance measurements on multiple point ground systems
• ★Datalogging with 99 data points , 65mm×32mm jaw size for larger round jaw.
• ★Direct reading of ground resistance from 0.01ohm to 1200ohm with 0.001Ohm resolution,Current from 0.00mA to 40.0A,0.05mA resolution.
