AUZHU- STB - Metric- Carbon steel Bracket Guide shaft supports T-flange seat Strut clamps Tube clamp connectors Clamp mountings Column clamp Clamping and connecting elements Fixture Size: D15 mm

About this product: * The wide range of brackets and clamps, which can be used for both square and round tubes, is ideal for building modular structures and a variety of industrial applications. These open-ended guide shaft supports can also be repeatedly locked or dismantled without damaging the shaft, thus adapting them to a wide range of use scenarios. The clamps are available in aluminium (STA) or carbon steel (STB). The hardness of the clamps varies from material to material, so it is recommended that you select the appropriate bracket material according to the loads that the shaft will be subjected to. * If you need a cost-effective solution, the aluminium alloy of product type STA can meet your requirements. If you need a high-strength, high-rigidity bracket, the carbon steel material of product type STB can meet your requirements. * Scope of application: This bracket is made of carbon steel with a Black Oxide finish, which offers high strength, rigidity, high load capacity, cost-effectiveness and is weldable. It can be widely used in standard parts of precision equipment such as factory automation, MRO, manufacturing and processing, electronic and electrical equipment, ships, military aviation, decorative hardware, industrial manufacturing, plastic molds, etc. * We are a factory, if you need more special hardware parts, we can provide customized processing services. We can customize the style and size you need according to the customer's drawings or requirements, and welcome your letters.

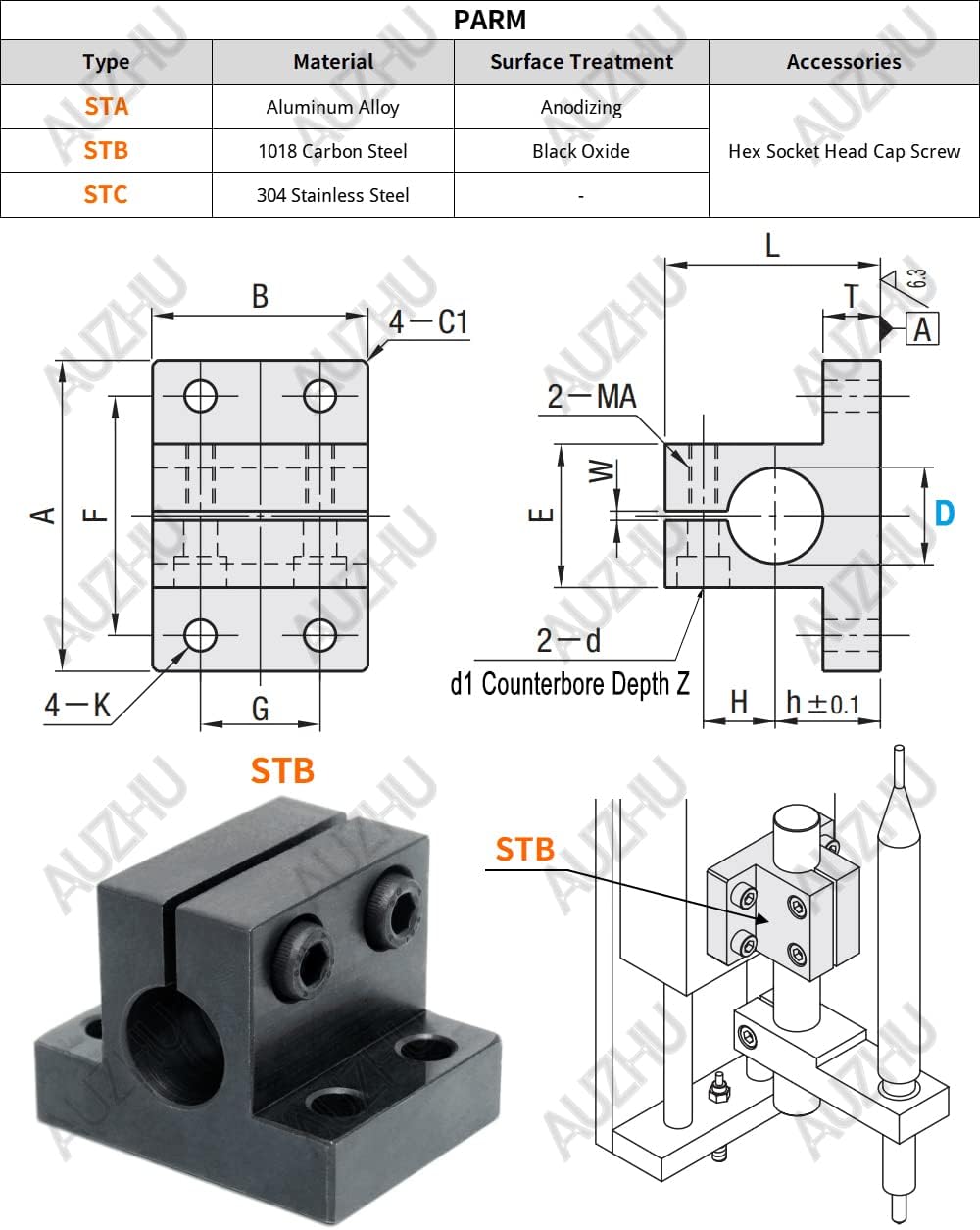

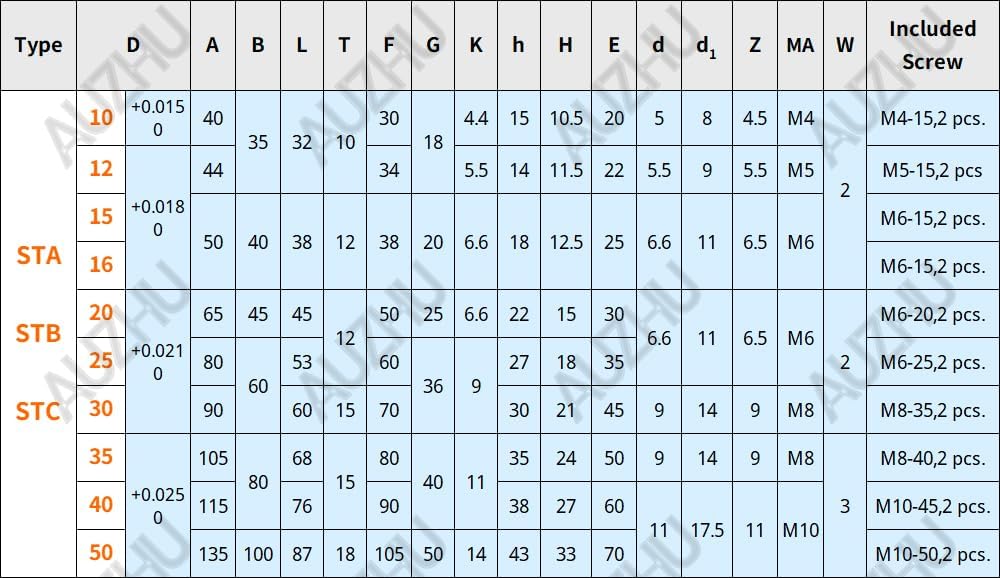

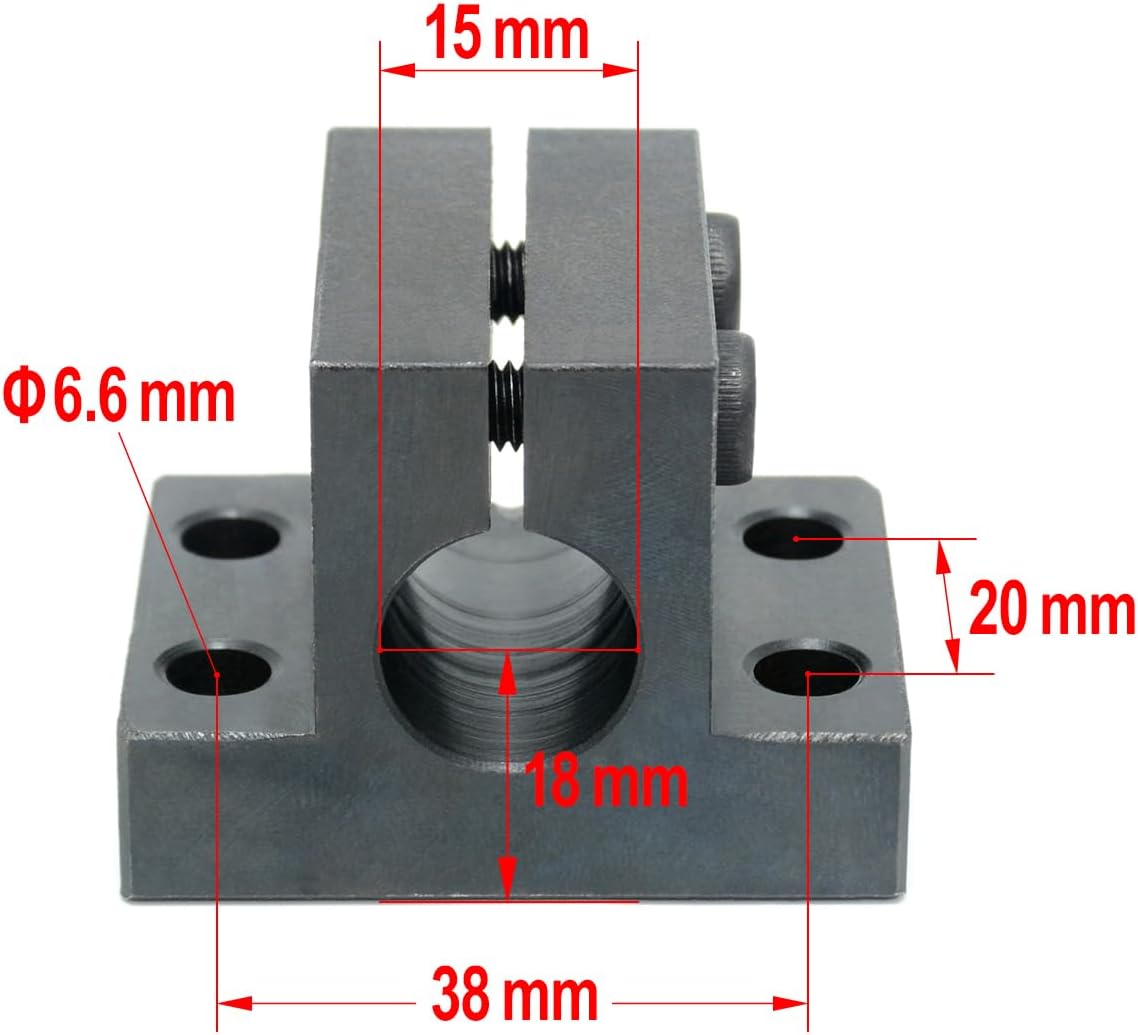

• STB is the model number for this product. The size you have chosen is: The inner diameter D of the shaft bore of the bracket is 15 mm. Different capital letters are used in the product drawings to represent the dimensions of the various detail positions on the product. The specific dimensional data can be found under the corresponding letters in the specification sheet, and several sizes are available.
• [Material of main body: Carbon Steel]; [Finish of main body: Black Oxide]; [Material of fastening bolts: Carbon Steel]; [Finish of bolts: Black Oxide].
• This bracket supports and secures shafts or pipes, etc., and can also withstand certain loads. The shaft hole of the bracket can be adjusted for locking effect by turning the bolt. When locking shafts or pipes with uneven surfaces, the clearance between the shaft and the bracket can be controlled by twisting the bolt, making it easy to lock the shaft or dismantle it on the spot during use, so that it can be applied to a wider range of use scenarios and enhance use efficiency.

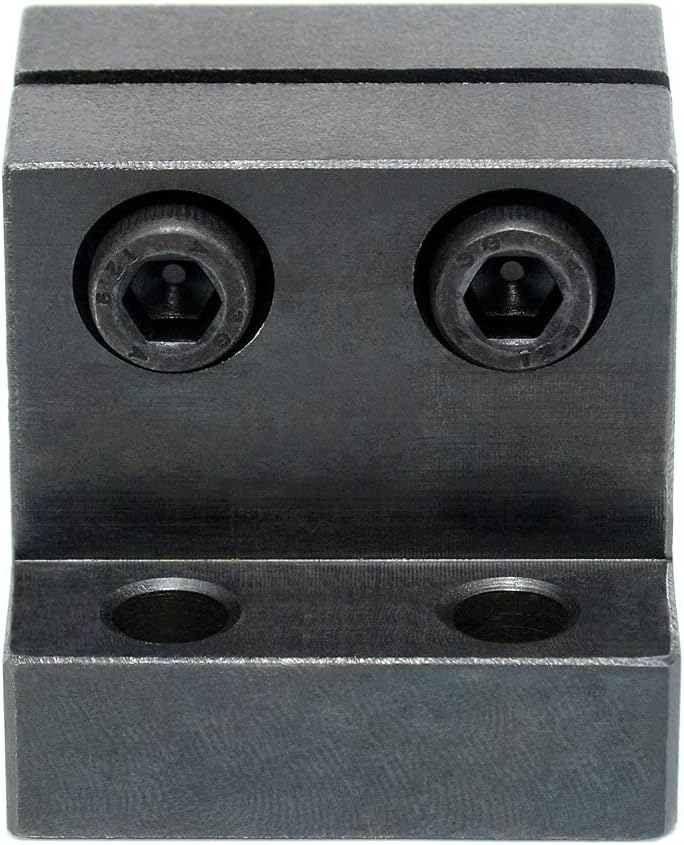

• This bracket accessory includes two locking bolts that lock the bracket's shaft holes. The bolts are hexagon socket head cap screws that can be turned with a hexagonal spanner to control the locking of the shaft holes. There are four mounting holes in the flange of the bracket that can be used to mount the bracket and hold it in place.
• Warm reminder: the data on this page are in metric millimetres. As the sizes are measured manually, there may be a slight error, but the error will be less than ±0.5 mm, please understand.
