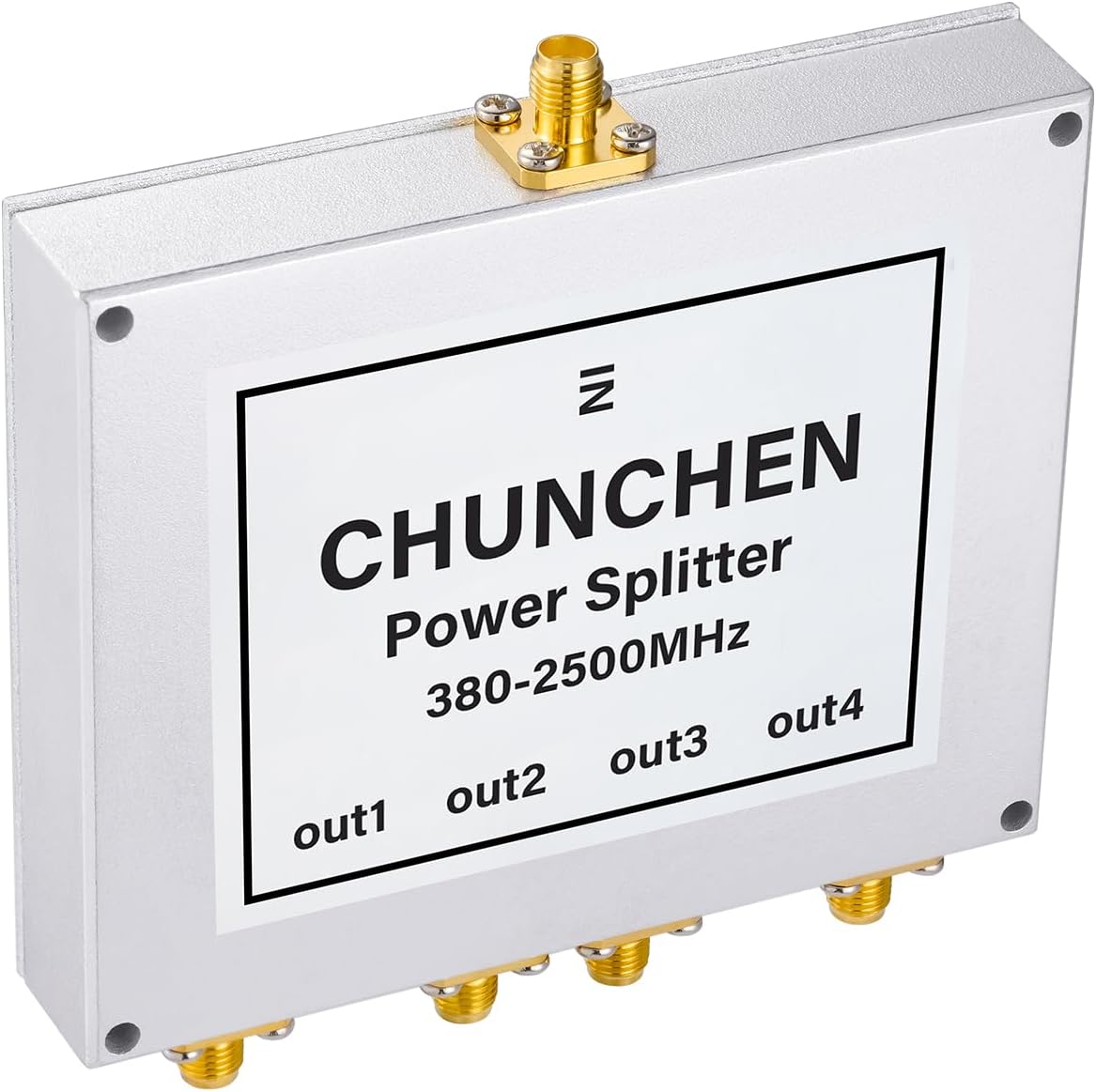

4 Way SMA Female Connector Power Splitter 50 Ohm Signal Splitter 380MHz-2500MHz Cable Signal Splitter 1 Input 4 Output for Antenna Cable

Product Details：Product name: SMA female connector 4 way signal splitter Connector port: 1 input and 4 output Output port type: 4 way Connector type(Input): SMA female Connector type(Output 1): SMA femaleConnector type(Output 2): SMA femaleConnector type(Output 3): SMA femaleConnector type(Output 4): SMA femaleProduct material(Body): Aluminum alloy Connector material: Copper Frequency range (GHz): 380-2500Mhz Inputsertion loss (dB): 6.9-9.6Isolation (dB): ≤20 VSWR: ≥1.1; ≤1.3 Amplitude balance (dB): ≤0.3 Phase balance (°): ≤5 Impedance (Ω): 50 Power capacity (W): 50 Operating temperature (°C): -30～+70 Product dimensions (cm): 9.8*9.5*1.6cm Package: 1 x SMA female 4 way power splitter Weight: 235.5 g

• Product name: SMA female 4 way power splitter 1 input 4 out;
• Connector port: 1 input and 4 output; Output port type: 4 way; Connector type(Input): SMA female; Connector type(Output 1): SMA female; Connector type(Output 2): SMA female; Connector type(Output 3): SMA female; Connector type(Output 4): SMA female; Product material(Body): Aluminum alloy; Connector material: Copper;
• Specification: Frequency range (GHz): 380-2500Mhz; Insertion loss (dB): 6.9-9.6; Isolation (dB): ≤20; VSWR: ≥1.1, ≤1.3; Amplitude balance (dB): ≤0.3; Phase balance (°): ≤5; Impedance (Ω): 50; Power capacity (W): 50; Operating temperature (°C): -30～+70; Product dimensions (cm): 9.8*9.5*1.6cm;
• Applicaion: Provides 4 amplified SMA female output ports for use with cable antenna satellite signal and so on;
• Package: 1 x SMA female 4 way signal splitter(Weight:235.5g).
