1U Rack Mount KVM Console, 8 Port Cat5 KVM Switch with 8 HDMI to RJ45 Dongles, 19" Rackmount Monitor Keyboard,OSD/Hotkey/Button Switching,1280×1024 60Hz 5:4 Ratio,Compatible with Windows Linux Mac Sun
4.9 (77 items)
Limited Time Sale$955.98 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216173915 | Release Date | 2026/04/19 | List Price | $637.32 | Model Number | 216173915 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

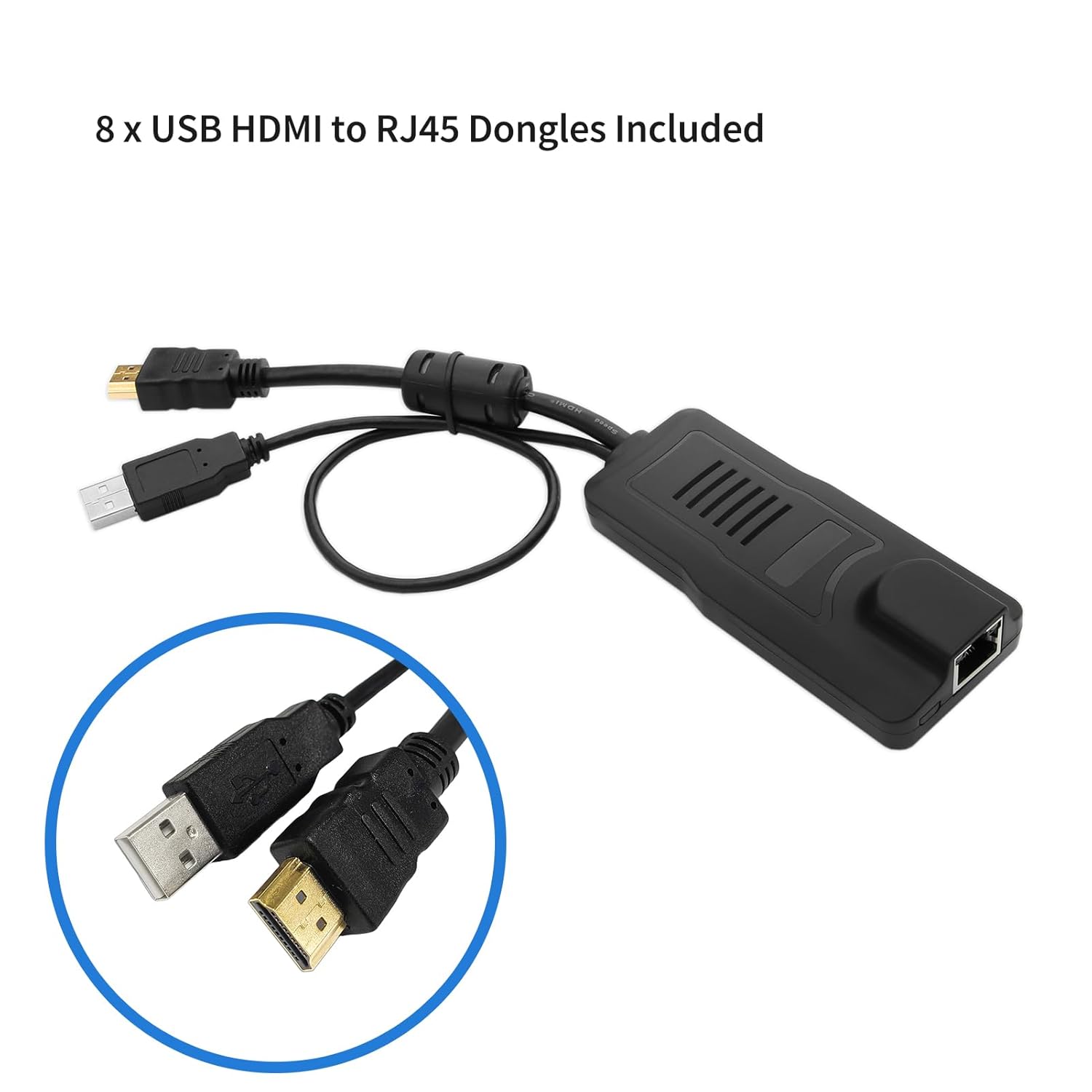

- The 1U 8 Port Cat5 Rack Mount KVM Console is an all-in-one solution featuring a 19" LCD monitor, keyboard, touchpad, and 8-port Cat5 KVM switch, all within a slim 1U rack space. Using Cat5e/6 cables and the included 8 pcs HDMI/USB RJ45 dongles, it allows access, management, and control of up to 8 HDMI servers/PCs up to 230 ft from the KVM Console.
- Three Switching Methods: switch between computers using front panel buttons, keyboard hotkeys, or on-screen display (OSD). Plug and play. The OSD menu includes various management functions such as Auto Scan for monitoring selected computers, BRC Mode for simultaneous monitoring of multiple computers, and Load Default to reset settings.
- 19 Inch Rackmount Monitor: Featuring high resolution 1280x1024@60Hz, 16.7M Display Colors, and a 1000:1 Contrast Ratio. With a swift 5ms response time and wide 85/85/80/80 (L/R/U/D) viewing angles, it ensures vibrant visuals from any perspective. The LCD module rotates up to 108°, ensuring optimal viewing comfort, perfect for monitoring multiple servers/PCs.

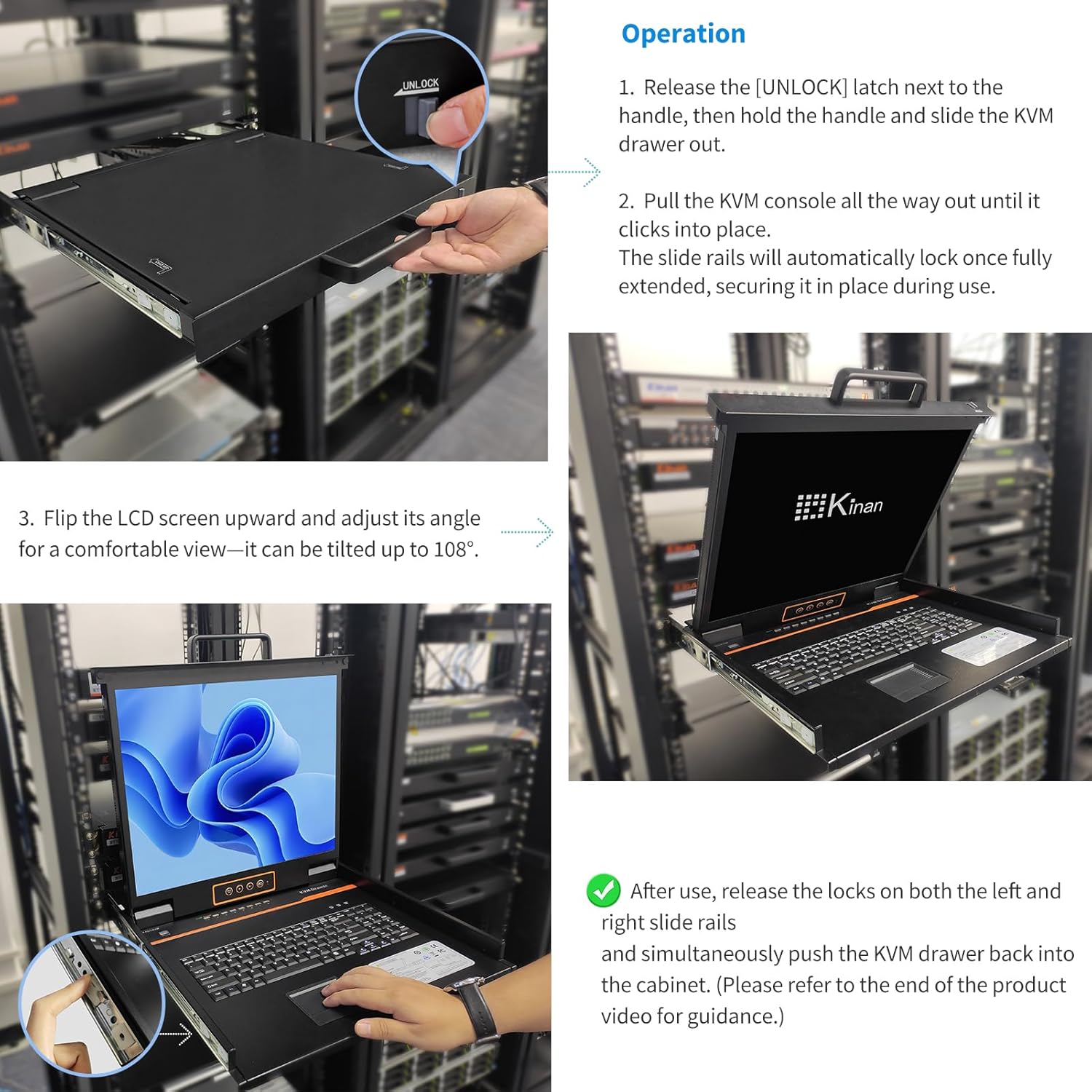

- KVM Drawer Size: 17.6×23.8×1.67 inches(W x D x H); Mount depth: 28.2" to 32.5", ideal for standard 19" wide rack cabinets. Features Auto-Lock Slide Rails for stability: Pull out until rails lock; release latches to retract into rack. NOTE: The KVM mount depth refers to the distance from the front to the back rails of the cabinet.Always check measurements for a proper fit.
- Universal Compatibility: This 8-port Cat5 LCD KVM console is compatible with Windows, Linux, Unix, macOS, Solaris, Red Hat, Ubuntu, and more, streamlining access and control across diverse server environments. The product's performance and reliability are backed by international certifications including UL, FCC, CE, CB, UKCA, PSE, SAA, and RoHS2.0, as well as ISO9001:2015 and ISO14001:2015 held by the company.
| Color | Black |
|---|---|
| Model | LC1908 |
| Wattage | 20 watts |
| Terminal | Screw |
| Brand Name | Kinan |
| Unit Count | 1.0 Count |
| Item Weight | 13.4 Kilograms |
| Switch Type | Osd,hotkey,button |
| Circuit Type | 8-way |
| Contact Type | Normally Open |
| Manufacturer | Kinan |
| Material Type | Alloy Steel |
| Mounting Type | Rack Mount |
| Connector Type | Plug In |
| Control Method | Push Button |
| Current Rating | 1.5 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 23.8 x 17.6 x 1.67 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 120 Volts |
| Specification Met | Rohs 2.0, Fcc, Ce, Ul, Cb, Iso 9001, Iso 14001 |
| Included Components | 1xCAT5 KVM,8xHDMI Dongle,1xCat5e Patch Cable,1xGround Cable,Power Cord,2xBracket |
| Number of Positions | 8 |
| Warranty Description | 2 Year Manufacturer |
| Upper Temperature Rating | 50 Degrees Celsius |
| International Protection Rating | IP54 |
